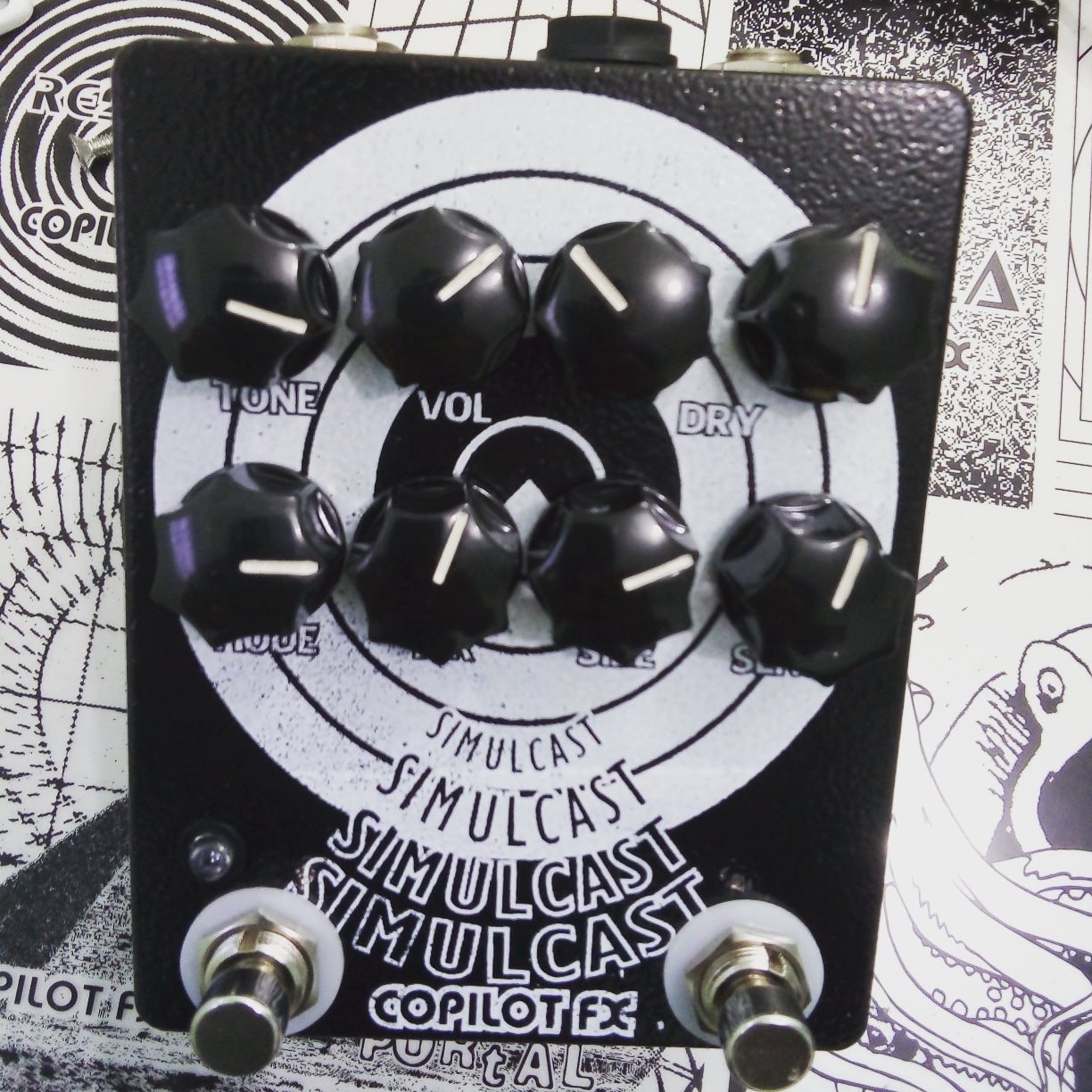

Copilot Fx Simulcast is a short sampler / recorder / repeater, it will capture a portion of the signal at the input and continuously repeating it.
Independent volume control for the repeated signal and input signal, give the option to play over it or just play the captured signal.
IN/OUT/DC/EXP Jacks on top
Sense: Amount of volume to start writing the buffer, bellow that amount the buffer will be read.
Size: Amount of elements to be read from the buffer.
DIR: Selects how the buffer is read: forward, forward x2, reverse-reverse a 5th up, reverse and reverse x2
Mode: Selects the mode operation
Momentary: Press to Play/Read the Buffer (otherwise it will be writing/recording)
Momentary Inverse: Press to Write/Record (otherwise it will be playing/reading)
Latch: Press once to Play/Read, it will keep reading/playing until you press again and then it will write/record.
Envelope: Sense knob sets the level where the signal needs to go above to start recording/writing the buffer (if it's bellow it will play/read)
Dry: Amount of volume of the input signal, when writing the buffer and when recording the buffer.
Vol: Amount of volume of the recorded signal.
Tone: Passive non resonant low pass controls, to remove the high end.
Exp Jack: external control of the buffer size rate via TRS expression pedal, it won't accept 0-5v cv signals, use the broadband to translate 0-5v cv signals into expression.
Silk Screened artwork with enamel ink into a powder coated aluminium case
Dimensions: 4.7" x 3.7" x 3"
Powered only by DC 9v power Jack (center negative), no batteries option
Expression Jack: external control of the rate, TRS expression jack Compatible with the Autodialer, Broadcast and Broadband
